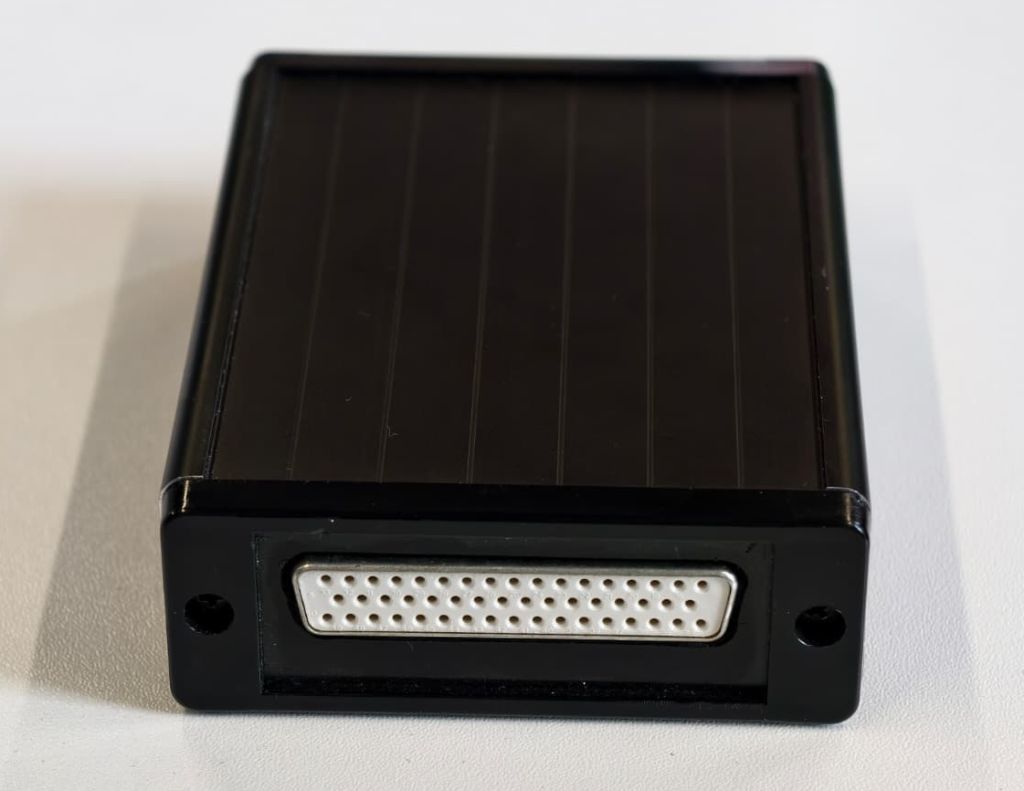

ARINC-429 USB/Avionics Adapter

USB to ARINC-429 interface device for avionics data bus communication

ARINC-429 Compliance: Supports both low speed (12.5 kbps) and high speed (50 / 100 kbps) data rates
Data Handling: On-chip 32 kB memory for buffering and scheduling
Programmable Filtering: Label-based receive filtering and selective data capture
Transmission Control: Autonomous message scheduler for periodic transmissions
Auto Initialization: Configuration loading from external EEPROM at power-up
USB Interface: Full-Speed USB 2.0
Indicators: LED status for USB link, transmit and receive activity
Built-In Test Features:
- PBIT (Power-On Built-In Test): Automatic self-test at power-up
- IBIT (Initiated Built-In Test): User-initiated self-test during operation
- Loopback capability for verifying Tx/Rx channel integrity

Total Channels:
• Up to 16 Receive (Rx) channels
• Up to 8 Transmit (Tx) channels

Receiver Features:
• Label filtering and data selection
• Programmable parity checking

Transmitter Features:
• Scheduled or host-controlled transmissions
• Slew rate controlled drivers
• Tri-state outputs available
